SDWebImage 是 Objective-C 项目中最常用的异步下载并缓存图片的第三方库。GitHub 地址：

https://github.com/rs/SDWebImage

它为我们提供了简单的入口：

1
2
3
4
5
6
7
// #import "UIImageView+WebCache.h"
NSURL *imageURL = [NSURL URLWithString:@"XXX"]; // 图片地址
UIImageView *imageView = [[UIImageView alloc] init];
[imageView sd_setImageWithURL:imageURL]; // 下载并缓存图片
[self.view addSubview:imageView];

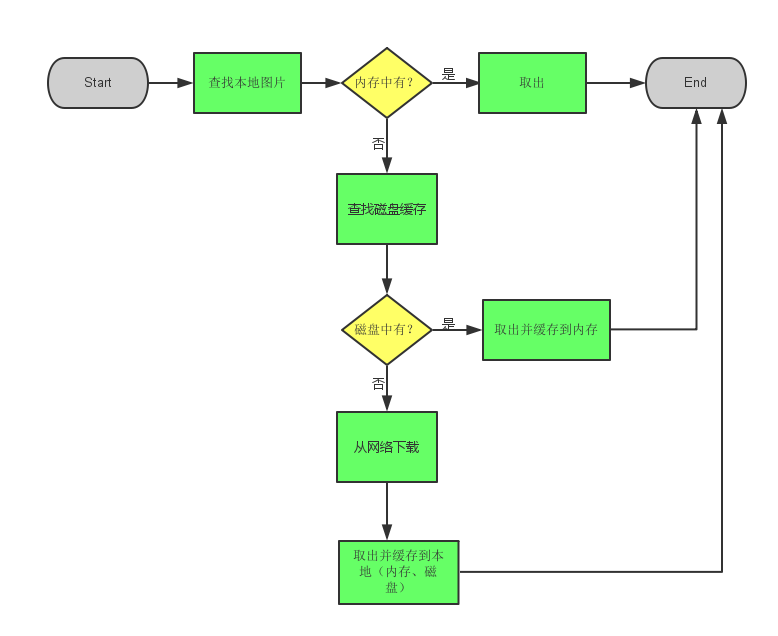

SDWebImage 下载缓存机制如下：

Sample Flowchart Template.png

先看看它明确的职责分工：

SDImageCache : 负责管理缓存 内存、硬盘
SDWebImageDownloader : 负责管理下载
SDWebImageManager : 负责管理上面两者

SDWebImageManager 干了啥

上面代码中设置图片视图 URL 后，会调用下面方法：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
// SDWebImageManager.m
- (id <SDWebImageOperation>)downloadImageWithURL:(NSURL *)url
                                         options:(SDWebImageOptions)options
                                        progress:(SDWebImageDownloaderProgressBlock)progressBlock
                                       completed:(SDWebImageCompletionWithFinishedBlock)completedBlock {

    ...

    __block SDWebImageCombinedOperation *operation = [SDWebImageCombinedOperation new];
    __weak SDWebImageCombinedOperation *weakOperation = operation;
    ...

    NSString *key = [self cacheKeyForURL:url];

    // 0
    operation.cacheOperation = [self.imageCache queryDiskCacheForKey:key done:^(UIImage *image, SDImageCacheType cacheType) {
        if (operation.isCancelled) {
            @synchronized (self.runningOperations) {
                [self.runningOperations removeObject:operation];
            }

            return;
        }

        if ((!image || options & SDWebImageRefreshCached) && (![self.delegate respondsToSelector:@selector(imageManager:shouldDownloadImageForURL:)] || [self.delegate imageManager:self shouldDownloadImageForURL:url])) {

            ...

            // 1
            id <SDWebImageOperation> subOperation = [self.imageDownloader downloadImageWithURL:url options:downloaderOptions progress:progressBlock completed:^(UIImage *downloadedImage, NSData *data, NSError *error, BOOL finished) {
                __strong __typeof(weakOperation) strongOperation = weakOperation;
                if (!strongOperation || strongOperation.isCancelled) {

                    ...

                }
                else if (error) {

                   ...

                }
                else {

                    ...

                    BOOL cacheOnDisk = !(options & SDWebImageCacheMemoryOnly);

                    if (options & SDWebImageRefreshCached && image && !downloadedImage) {

                    } else if (downloadedImage && (!downloadedImage.images || (options & SDWebImageTransformAnimatedImage)) && [self.delegate respondsToSelector:@selector(imageManager:transformDownloadedImage:withURL:)]) { // 2
                        dispatch_async(dispatch_get_global_queue(DISPATCH_QUEUE_PRIORITY_HIGH, 0), ^{
                            UIImage *transformedImage = [self.delegate imageManager:self transformDownloadedImage:downloadedImage withURL:url];

                            if (transformedImage && finished) {
                                BOOL imageWasTransformed = ![transformedImage isEqual:downloadedImage];
                                [self.imageCache storeImage:transformedImage recalculateFromImage:imageWasTransformed imageData:(imageWasTransformed ? nil : data) forKey:key toDisk:cacheOnDisk];
                            }

                            dispatch_main_sync_safe(^{
                                if (strongOperation && !strongOperation.isCancelled) {
                                    completedBlock(transformedImage, nil, SDImageCacheTypeNone, finished, url);
                                }
                            });
                        });
                    } else { // 2
                        if (downloadedImage && finished) {
                            [self.imageCache storeImage:downloadedImage recalculateFromImage:NO imageData:data forKey:key toDisk:cacheOnDisk];
                        }

                        dispatch_main_sync_safe(^{
                            if (strongOperation && !strongOperation.isCancelled) {
                                completedBlock(downloadedImage, nil, SDImageCacheTypeNone, finished, url);
                            }
                        });
                    }
                }

                ...
            }];

            ...
        }
        else if (image) { // 3
            dispatch_main_sync_safe(^{
                __strong __typeof(weakOperation) strongOperation = weakOperation;
                if (strongOperation && !strongOperation.isCancelled) {
                    completedBlock(image, nil, cacheType, YES, url);
                }
            });

            ...
        }
        else {
           ...
        }
    }];

    return operation;
}

0.查询本地（内存、磁盘）缓存

1.本地没有缓存，从网络上下载

2.下载完成后，缓存到本地（内存、磁盘）并返回

3.如果本地存在缓存（内存中有直接取出，磁盘中有存到内存中再取出） 直接取出 并返回

是否有缓存(内存、磁盘)？

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
// SDImageCache.m
- (NSOperation *)queryDiskCacheForKey:(NSString *)key done:(SDWebImageQueryCompletedBlock)doneBlock { // 0
    if (!doneBlock) {
        return nil;
    }
    if (!key) {
        doneBlock(nil, SDImageCacheTypeNone);
        return nil;
    }
    // First check the in-memory cache...
    UIImage *image = [self imageFromMemoryCacheForKey:key]; // 1
    if (image) {
        doneBlock(image, SDImageCacheTypeMemory);
        return nil;
    }
    NSOperation *operation = [NSOperation new]; // 2
    dispatch_async(self.ioQueue, ^{ // 3
        if (operation.isCancelled) {
            return;
        }
        @autoreleasepool { // 4
            UIImage *diskImage = [self diskImageForKey:key]; // 5
            if (diskImage && self.shouldCacheImagesInMemory) {
                NSUInteger cost = SDCacheCostForImage(diskImage);
                [self.memCache setObject:diskImage forKey:key cost:cost]; // 6
            }
            dispatch_async(dispatch_get_main_queue(), ^{
                doneBlock(diskImage, SDImageCacheTypeDisk);
            });
        }
    });
    return operation;
}

0.key 为 图片 URL 字符串

1.去根据 key 查找内存中是否存在缓存的图片

2.创建 IO Operation 最后方法会返回

3.异步串行队列

1
_ioQueue = dispatch_queue_create("com.hackemist.SDWebImageCache", DISPATCH_QUEUE_SERIAL);

4.创建自动释放池，使内存及时释放

5.从硬盘里取出图片

6.缓存到内存

没有缓存那就下载

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
// SDWebImageDownloader.m
- (id <SDWebImageOperation>)downloadImageWithURL:(NSURL *)url options:(SDWebImageDownloaderOptions)options progress:(SDWebImageDownloaderProgressBlock)progressBlock completed:(SDWebImageDownloaderCompletedBlock)completedBlock {
    __block SDWebImageDownloaderOperation *operation;
    __weak __typeof(self)wself = self;
    [self addProgressCallback:progressBlock completedBlock:completedBlock forURL:url createCallback:^{
        NSTimeInterval timeoutInterval = wself.downloadTimeout;
        if (timeoutInterval == 0.0) {
            timeoutInterval = 15.0; // 0
        }
        // 1
        // In order to prevent from potential duplicate caching (NSURLCache + SDImageCache) we disable the cache for image requests if told otherwise
        NSMutableURLRequest *request = [[NSMutableURLRequest alloc] initWithURL:url cachePolicy:(options & SDWebImageDownloaderUseNSURLCache ? NSURLRequestUseProtocolCachePolicy : NSURLRequestReloadIgnoringLocalCacheData) timeoutInterval:timeoutInterval];
        request.HTTPShouldHandleCookies = (options & SDWebImageDownloaderHandleCookies);
        request.HTTPShouldUsePipelining = YES;
        if (wself.headersFilter) {
            request.allHTTPHeaderFields = wself.headersFilter(url, [wself.HTTPHeaders copy]);
        }
        else {
            request.allHTTPHeaderFields = wself.HTTPHeaders;
        }

        // 2
        operation = [[wself.operationClass alloc] initWithRequest:request
                                                          options:options
                                                         progress:^(NSInteger receivedSize, NSInteger expectedSize) { // 3
                                                             SDWebImageDownloader *sself = wself;
                                                             if (!sself) return;
                                                             __block NSArray *callbacksForURL;
                                                             dispatch_sync(sself.barrierQueue, ^{
                                                                 callbacksForURL = [sself.URLCallbacks[url] copy];
                                                             });
                                                             for (NSDictionary *callbacks in callbacksForURL) {
                                                                 dispatch_async(dispatch_get_main_queue(), ^{
                                                                     SDWebImageDownloaderProgressBlock callback = callbacks[kProgressCallbackKey];
                                                                     if (callback) callback(receivedSize, expectedSize);
                                                                 });
                                                             }
                                                         }
                                                        completed:^(UIImage *image, NSData *data, NSError *error, BOOL finished) { // 4
                                                            SDWebImageDownloader *sself = wself;
                                                            if (!sself) return;
                                                            __block NSArray *callbacksForURL;
                                                            dispatch_barrier_sync(sself.barrierQueue, ^{
                                                                callbacksForURL = [sself.URLCallbacks[url] copy];
                                                                if (finished) {
                                                                    [sself.URLCallbacks removeObjectForKey:url];
                                                                }
                                                            });
                                                            for (NSDictionary *callbacks in callbacksForURL) {
                                                                SDWebImageDownloaderCompletedBlock callback = callbacks[kCompletedCallbackKey];
                                                                if (callback) callback(image, data, error, finished);
                                                            }
                                                        }
                                                        cancelled:^{
                                                            SDWebImageDownloader *sself = wself;
                                                            if (!sself) return;
                                                            dispatch_barrier_async(sself.barrierQueue, ^{
                                                                [sself.URLCallbacks removeObjectForKey:url];
                                                            });
                                                        }];
        operation.shouldDecompressImages = wself.shouldDecompressImages;

        if (wself.urlCredential) {
            operation.credential = wself.urlCredential;
        } else if (wself.username && wself.password) {
            operation.credential = [NSURLCredential credentialWithUser:wself.username password:wself.password persistence:NSURLCredentialPersistenceForSession];
        }

        // 4
        if (options & SDWebImageDownloaderHighPriority) {
            operation.queuePriority = NSOperationQueuePriorityHigh;
        } else if (options & SDWebImageDownloaderLowPriority) {
            operation.queuePriority = NSOperationQueuePriorityLow;
        }
        [wself.downloadQueue addOperation:operation]; // 5
        if (wself.executionOrder == SDWebImageDownloaderLIFOExecutionOrder) {
            // Emulate LIFO execution order by systematically adding new operations as last operation's dependency
            [wself.lastAddedOperation addDependency:operation];
            wself.lastAddedOperation = operation;
        }
    }];
    return operation;
}

0.下载超时时间设置。默认：15 秒

1.NSMutableURLRequest 设置。即请求设置

2.下载 Operation。即 SDWebImageDownloaderOperation ，它继承自 NSOperation 的并发操作。

3.下载进度

4.操作优先级

5.将下载操作添加至下载队列
